Window or Wall Mounted Exhaust Horizontal

MICROCON® EX-BB HE with Germicidal UV

The MICROCON® EX Series was developed to exhaust air directly to the outside. This is suitable for rooms with direct outside exposure to exhaust through a window or wall. Designed for placement on a window sill or shelf and HEPA filtered, air can be directly exhausted without restrictions due to it first being filtered through a HEPA.

Units can also be mounted to an outside wall so thru-wall exhaust can be achieved. For internal rooms with no outside access units can be connected directly to exhaust vents or to room return air ductwork. Variations in horizontal and vertical designs with rear, side, and top exhaust venting are available.

EX-BUV (Horizontal) with optional UV Lamps & Top Exhaust

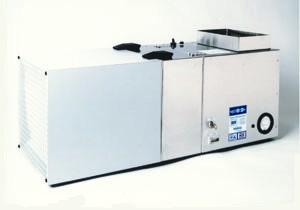

EX-BB (Horizontal) with Rear Exhaust

This allows units to be mounted on walls flush to ceiling. Where low ceilings or limited space above ceilings (for ceiling mounted ExC's) exist, the wall mounted EX is the logical solution.

Also available with germicidal UV lamps the EX Series offers a complete air purification system that complies with all CDC guidelines. Unit mounted pressure gauge, keyed high/low operation switch, modular design and stainless steel construction make the units suitable for years of trouble free operation.

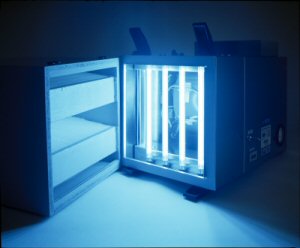

View of EX-BUV with HEPA module removed
exposing lighted germicidal UV lamps.

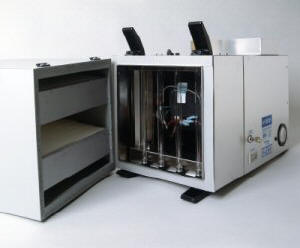

Same view with UV lights not activated

Product Details (click link)

MICROCON® Ex-BB	Manual Replacements Components Filters & UV lamps (Pricing) Submittal Drawing

MICROCON® Ex-BB-VE Portable Vertical Exhaust	Replacements Components Filters & UV lamps (Pricing) Submittal Drawing

MICROCON® Ex-BUV-HE Horizontal Exhaust	Replacements Components Filters & UV lamps (Pricing) Submittal Drawing

MICROCON® Ex-BUV-VE Top Exhaust	Replacements Components Filters & UV lamps (Pricing) Submittal Drawing

MICROCON® Ex-PM Rear Exhaust Security Version with Shelf	Replacements Components Filters & UV lamps (Pricing) Submittal Drawing

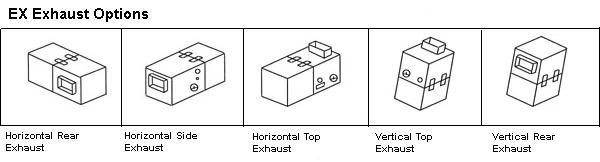

Exhaust Options Model Numbers Specifications Wall Mounted Security Switch

FDA Medical Device Listing Number
FDA 510K Classification No. K974682
